Hollinwell Bow Top Railings

The Hollinwell system was introduced to meet customer demand for even more decorative detailing with a smaller bow set inlayed within the standard bow. This effect provides a stunning point of differentiation from other forms of bow top, whilst maintaining effective perimeter security and high durability.

PDF standard detail drawings available to view and download

View Technical Drawings

About Hollinwell Bow Top Railings

The Hollinwell Bow Top railings are fabricated using 40x10mm RSF (rolled steel flat) horizontal rails, Ø12mm diameter vertical infill bars and bows with 50×50 SHS (square hollow section) posts. At heights 1400mm and above, infill bars and bows will be upgraded to Ø16mm diameter bars.

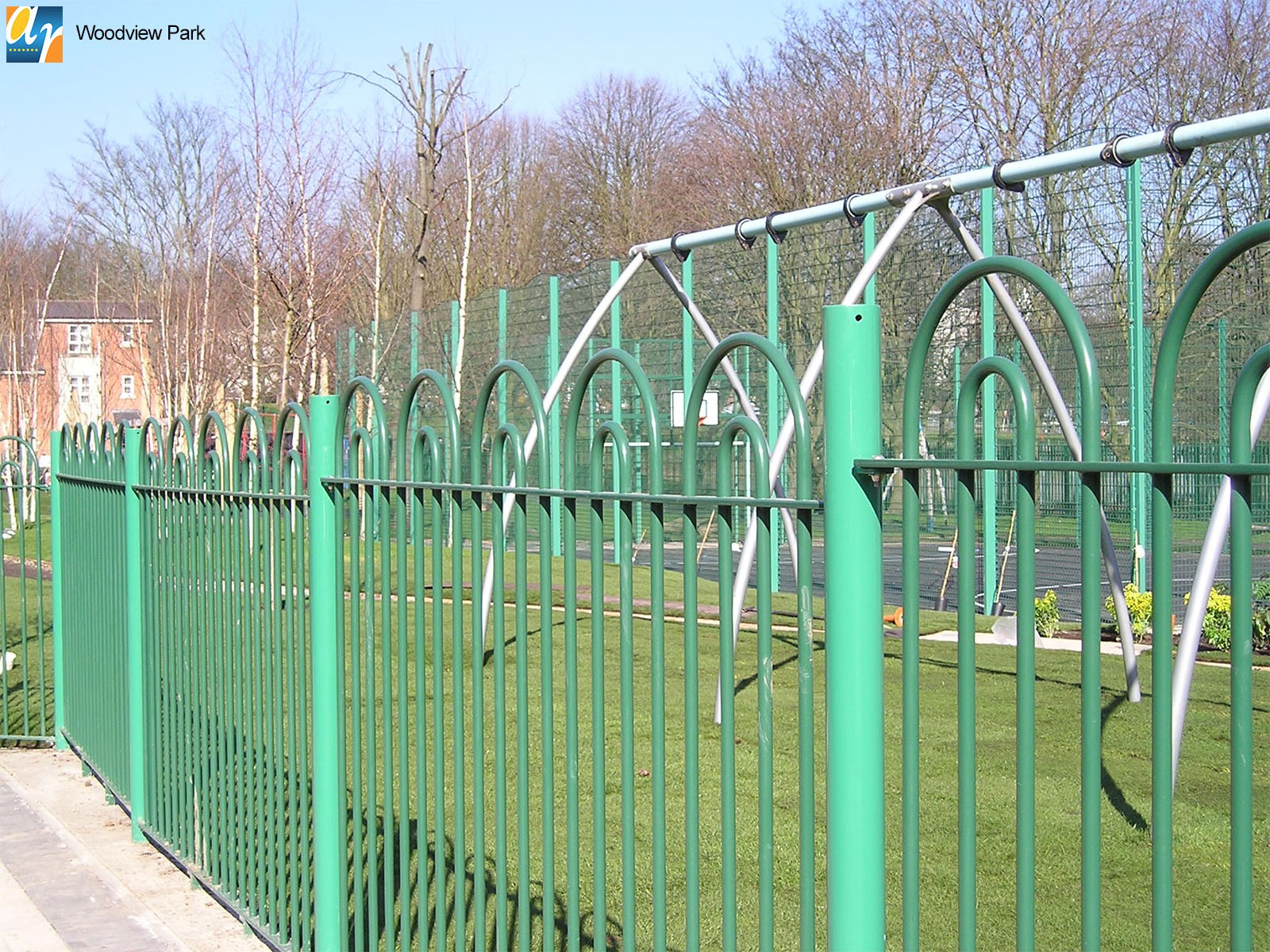

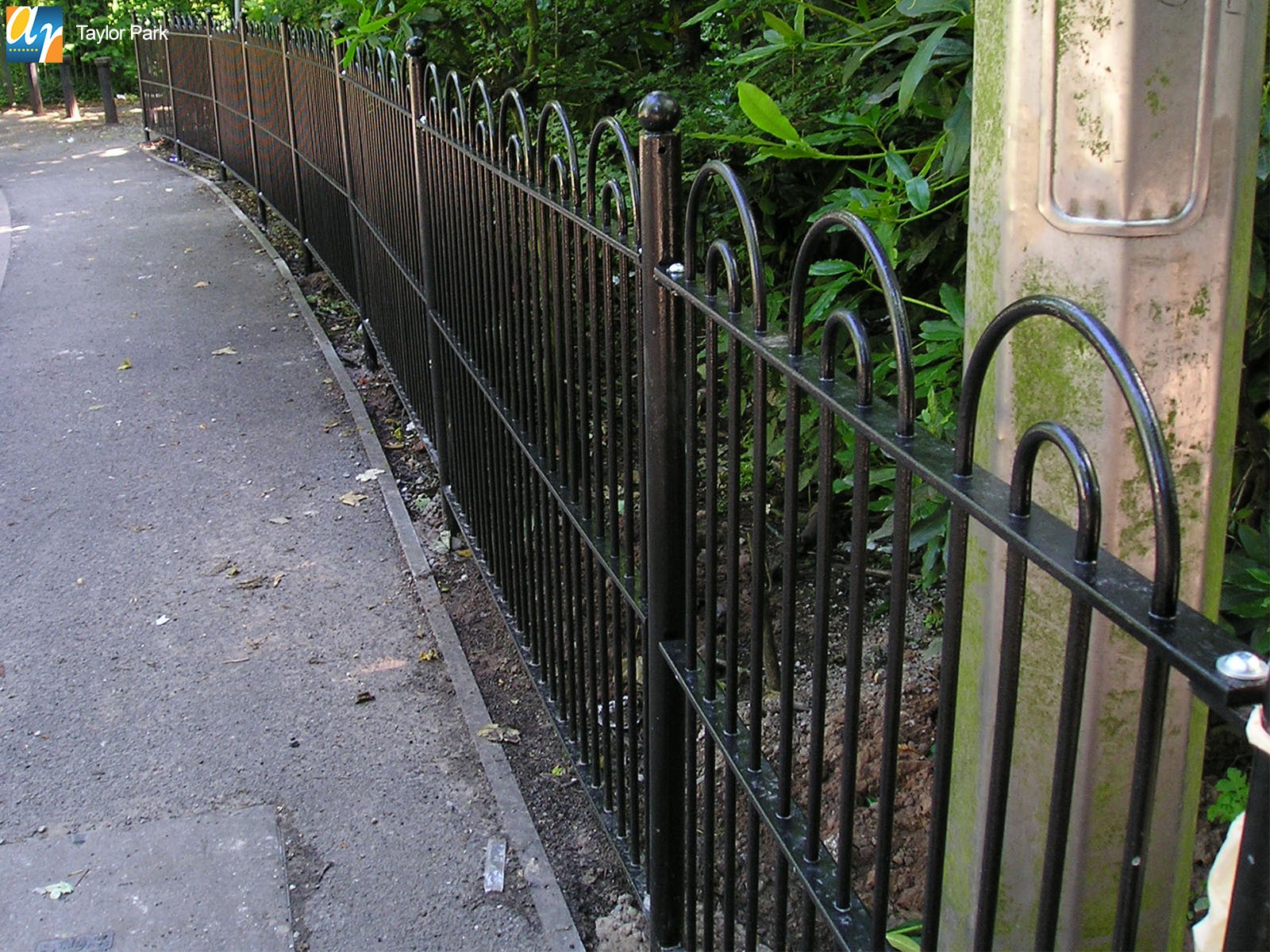

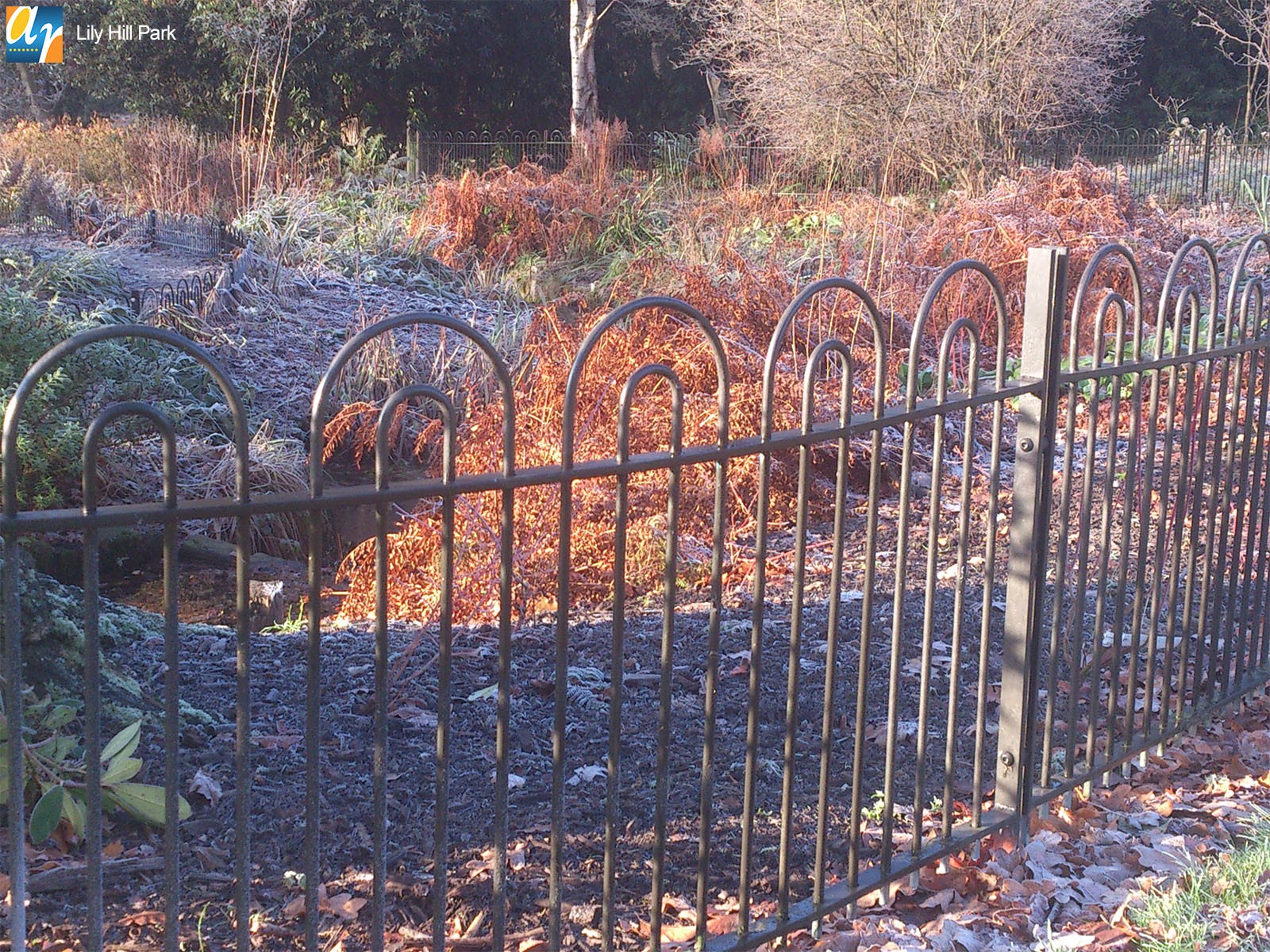

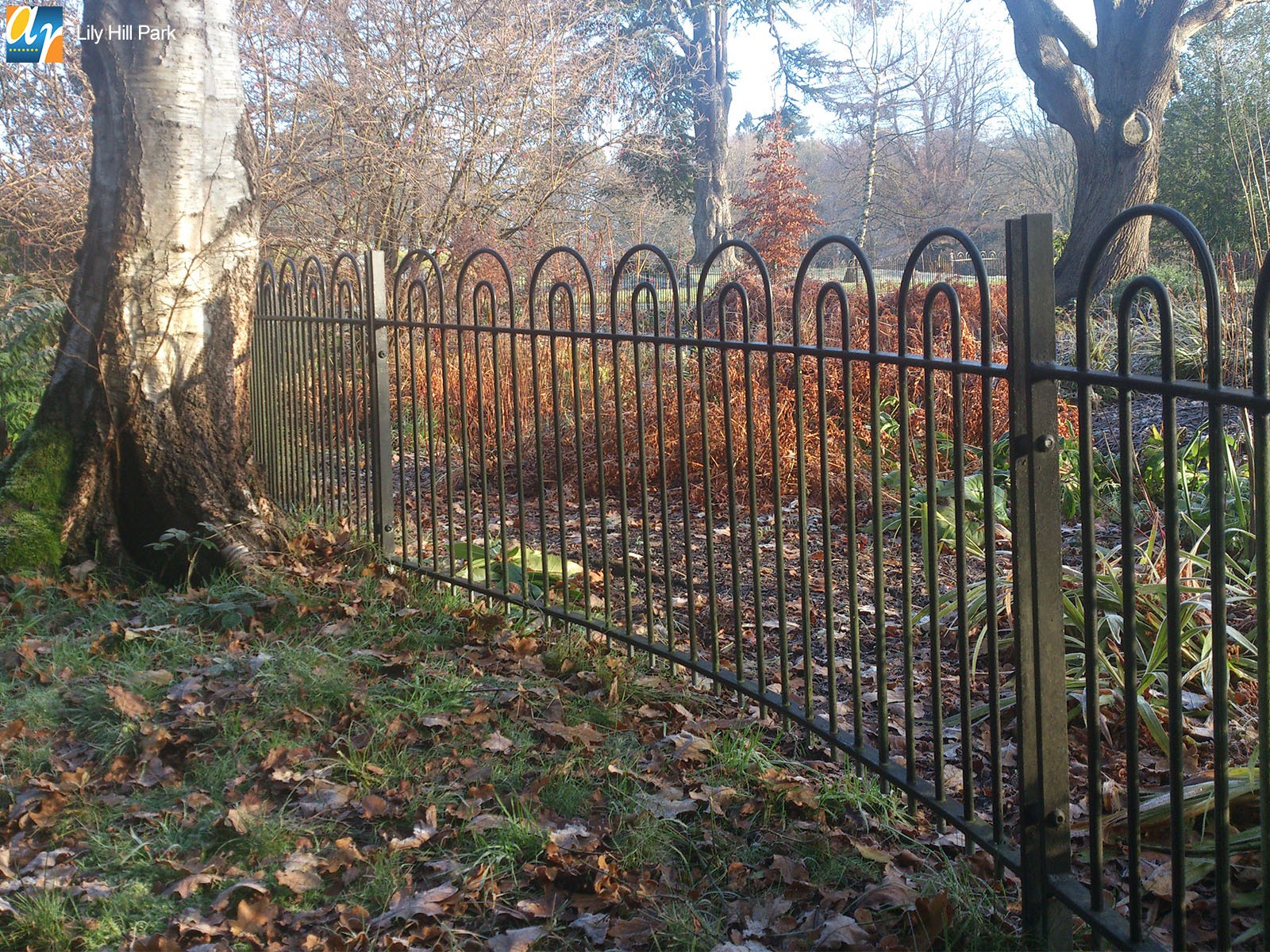

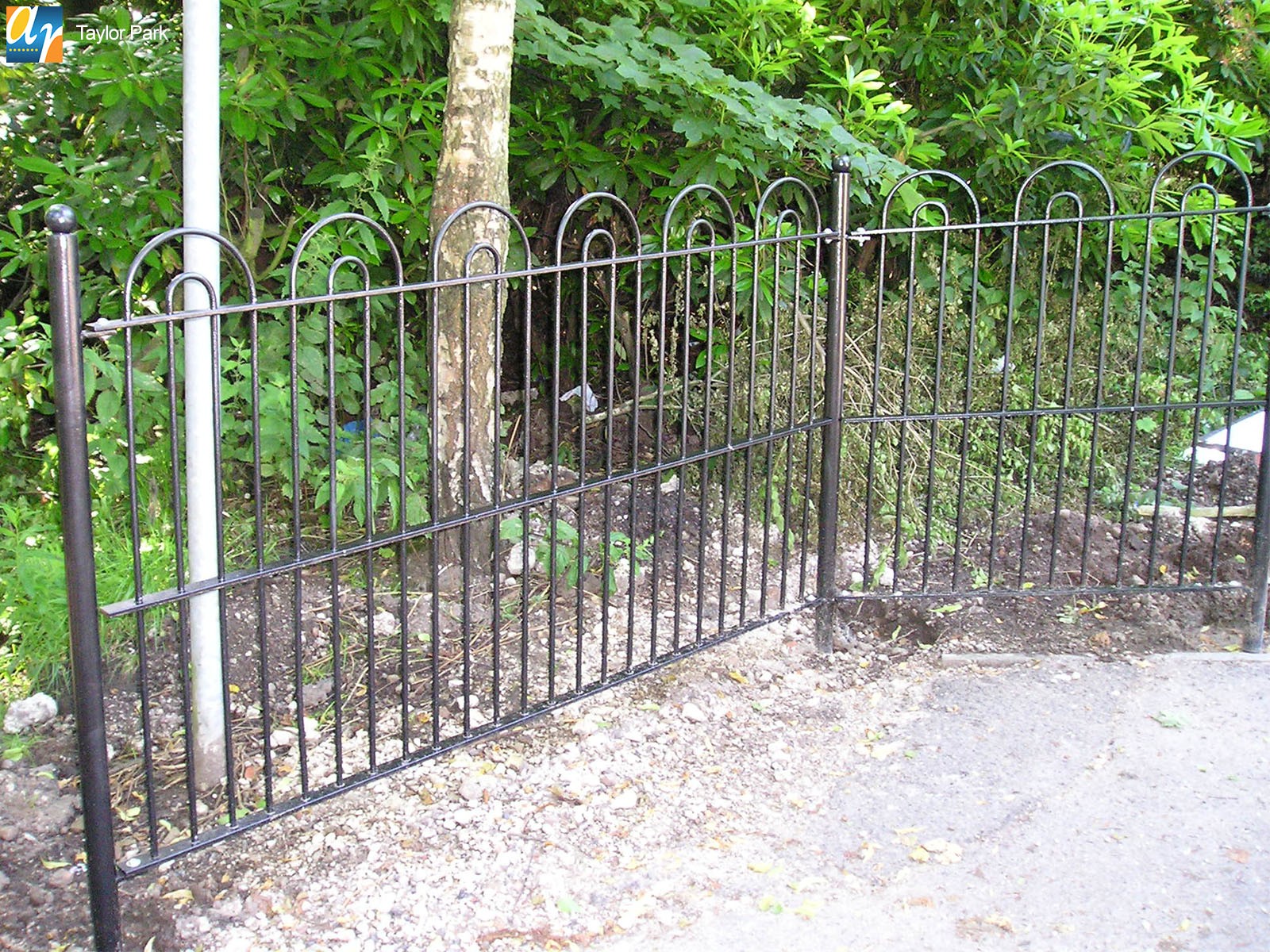

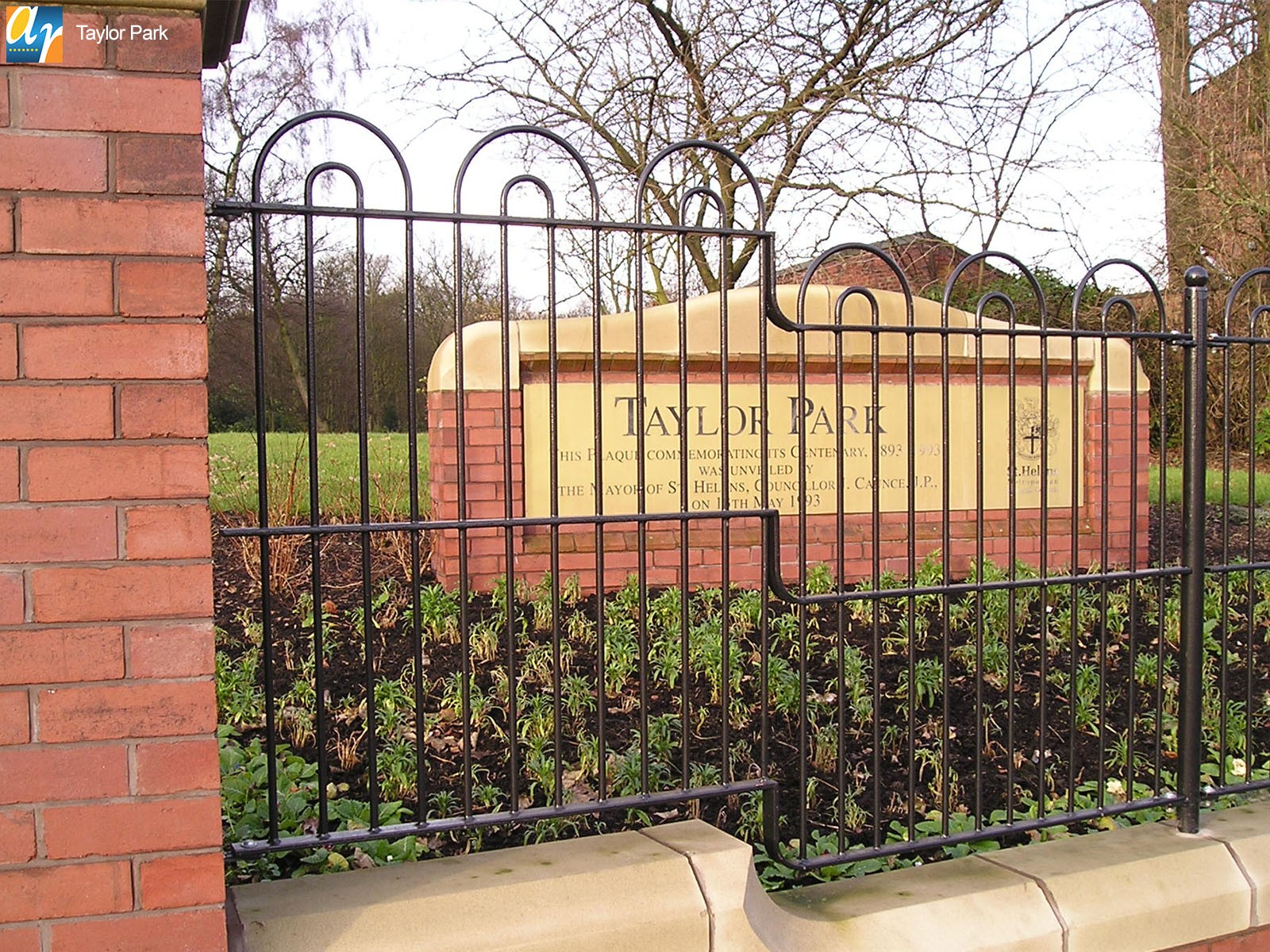

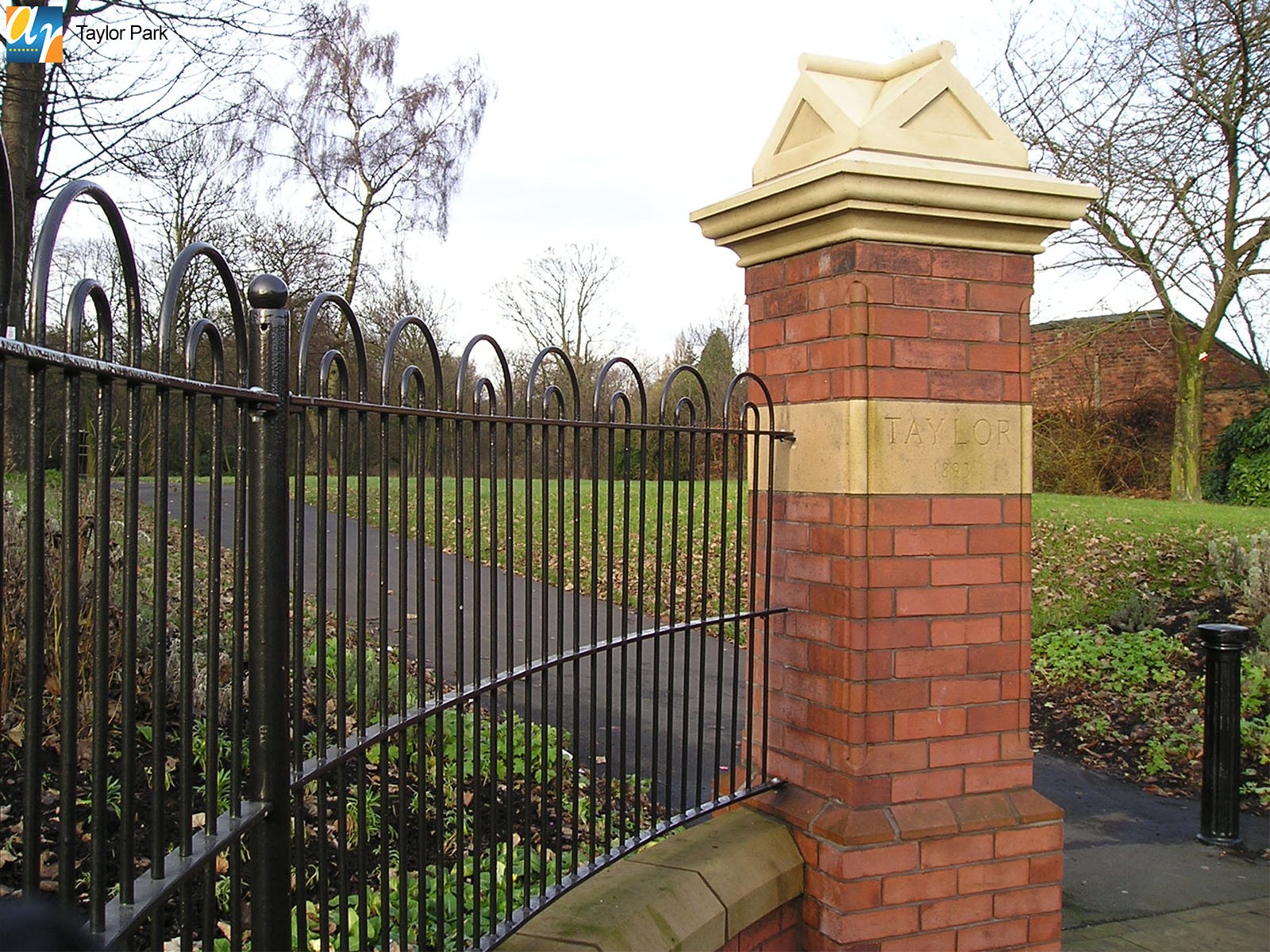

Please browse through the Alpha Rail projects library to see examples of our previous projects, alternatively browse our sector gallery.

Click here to view finish and colour options.
