Ravenshead Bow Top Railings

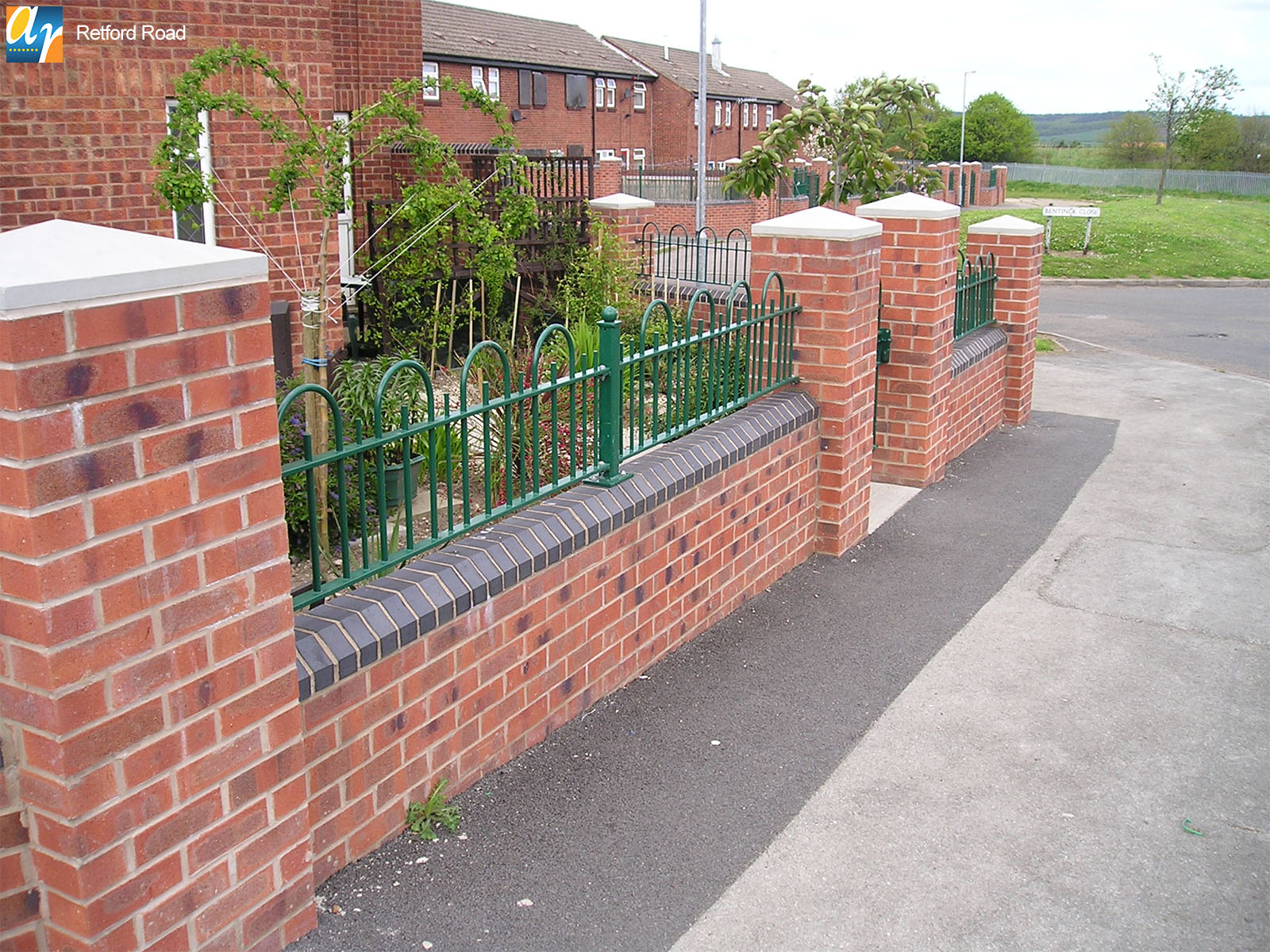

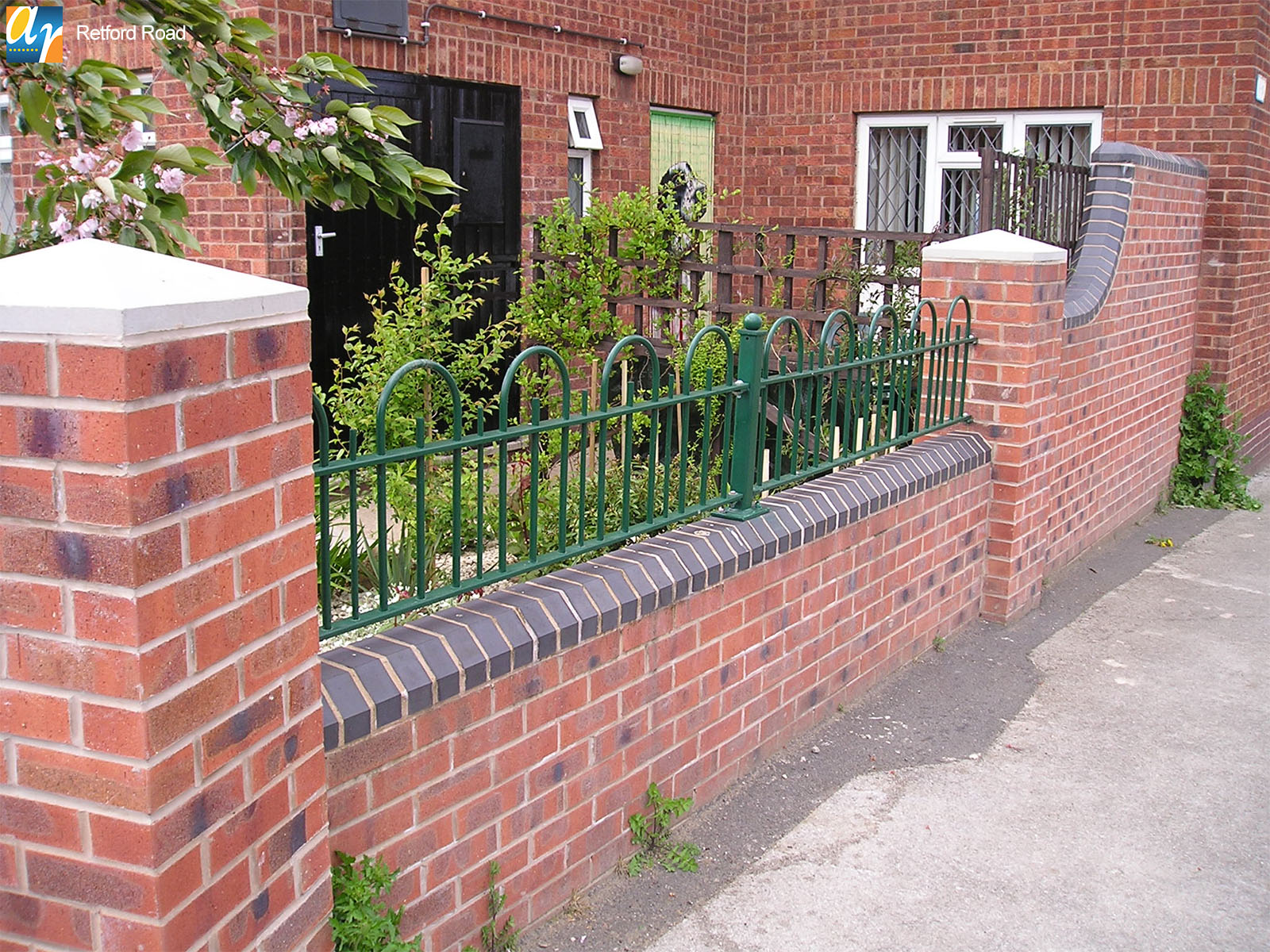

The Ravenshead Bow Top Metal railings features an additional vertical bar within the bow which protrudes through the top rail. This attractive variation provides a striking addition to the range, which is popular for projects where design is all important.

Standard detail drawings available to view and download

View Technical Drawings

About Ravenshead Bow Top Railings

The Ravenshead system is fabricated using 40x10mm RSF (rolled steel flat) horizontal rails, Ø12mm diameter vertical infill bars and bows with 50×50 SHS (square hollow section) posts.

Please browse through the Alpha Rail projects library to see examples of our previous projects, alternatively browse our sector gallery.

Click here to view finish and colour options.
