Flat Top railings are perfect for housing estates, car parks and a host of other applications and are excellent for providing boundaries and demarcating parking areas away from pedestrian walkways, as well as providing an attractive metal barrier.

The tabs below provide a standard detail drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.

If you require any further information for your project please do not hesitate to contact us.

Contact Us
Drawing
Specification
Fixing Options

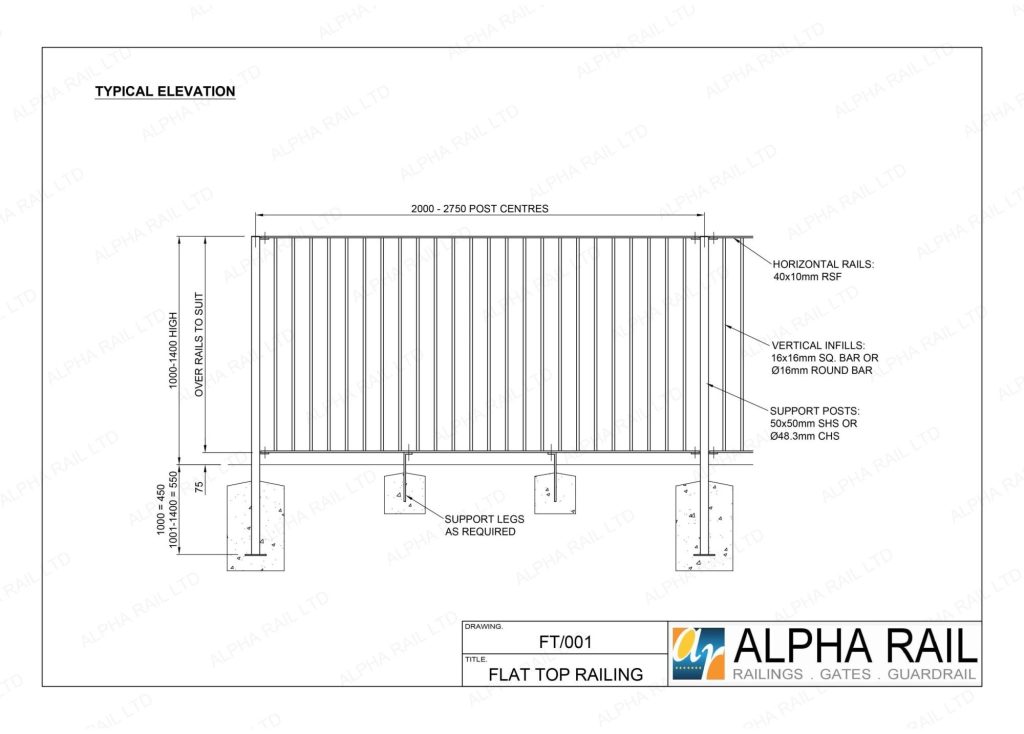

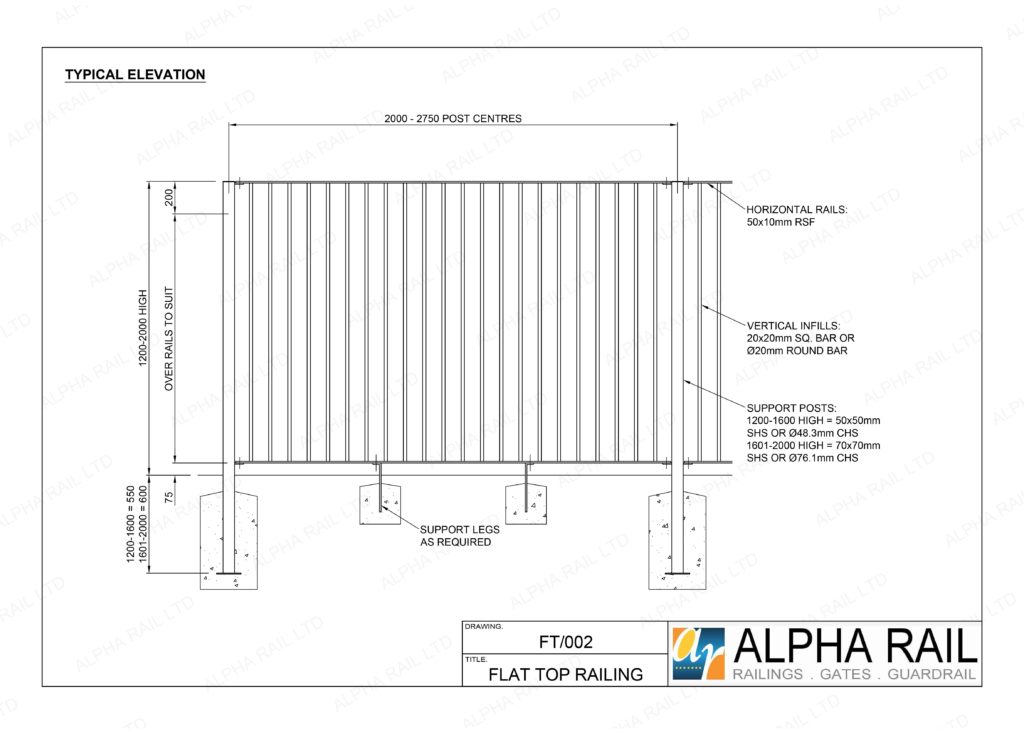

Drawing

Specification

Conformity: BS1722 part 9

Height: up to 2000mm

Horizontal Rails: 40x10mm RSF or 50x10mm RSF

Vertical Infills: Ø16mm or Ø20mm Round Bar. 16x16mm or 20x20mm Square Bar

Support Posts: 50x50mm SHS or 70x70mm SHS

Centres of Posts: 2000mm to 2750mm

Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut

Finish: Hot dipped galvanised to BS EN ISO1461

Colour: Polyester powder coated in a RAL colour of your choice

Method of setting posts: Posts rooted into concrete foundations, grouted into core drilled holes or baseplate fixed with anchor bolts
