The Albany Vertical Bar Railing is one of Alpha Rail’s most popular types of railings due to its stunning contemporary aesthetics and level of security provided. It is fabricated from vertical bar railings with round infills and posts, and comes complete with a machined top finial.

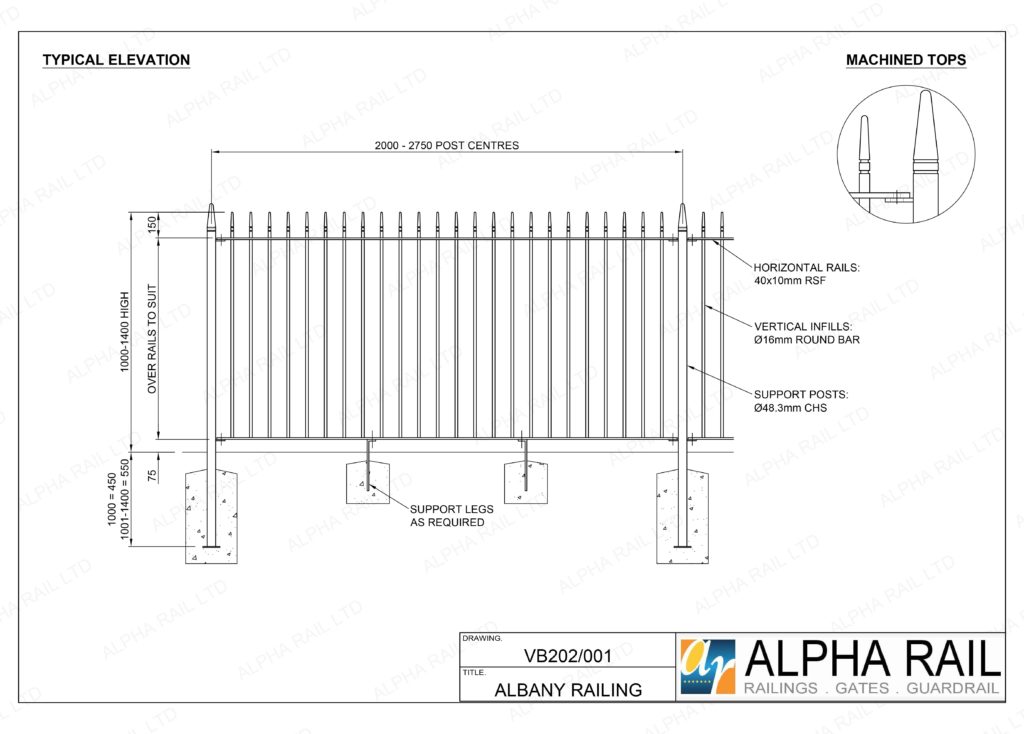

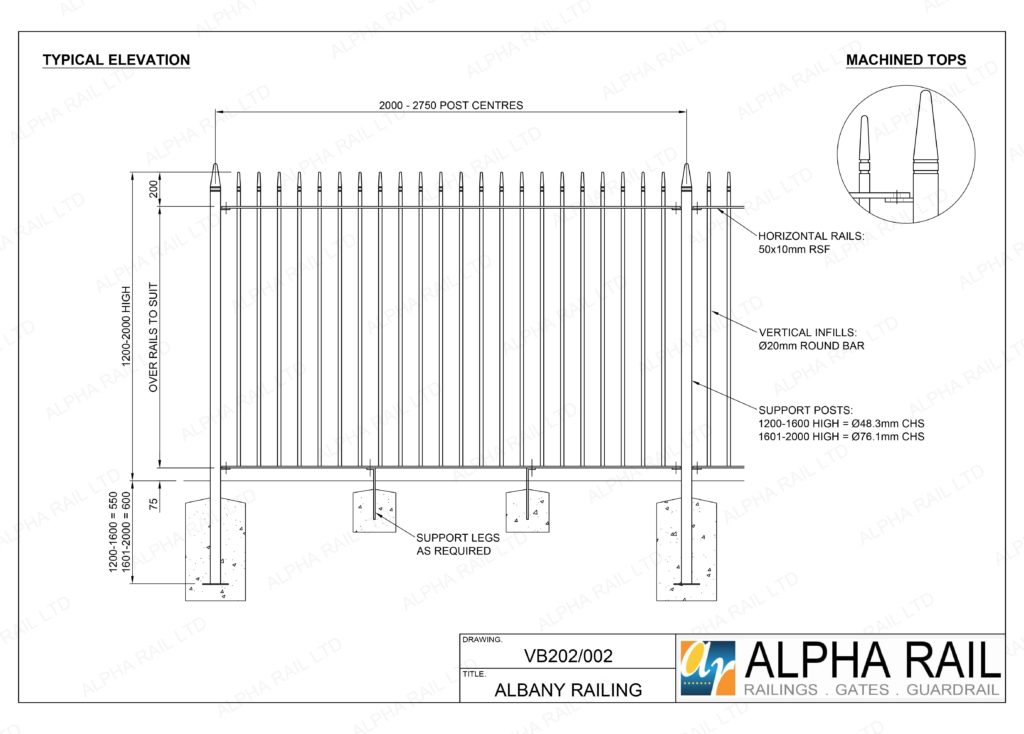

The tabs below provide a detailed drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.
If you require any further information for your project please do not hesitate to contact us.
Conformity: BS1722 part 9
Height: up to 2000mm
Horizontal Rails: 40x10mm RSF or 50x10mm RSF
Vertical Infills: Ø16mm or Ø20mm Round Bar
Support Posts: Ø48.3mm CHS or Ø76.1mm CHS
Centres of Posts: 2000mm to 2750mm
Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut
Finish: Hot dipped galvanised to BS EN ISO1461
Colour: Polyester powder coated in a RAL colour of your choice
Method of setting posts: Posts rooted into concrete foundations, grouted into core drilled holes or baseplate fixed with anchor bolts
