The baseplated pedestrian guardrail (M2) is identical in construction to the M2 model, with the exception that it is supplied with baseplates for surface mounting.
We carry large stocks in a galvanised finish for fast turnaround times. Polyester powder coating is also available in a RAL colour of your choice.

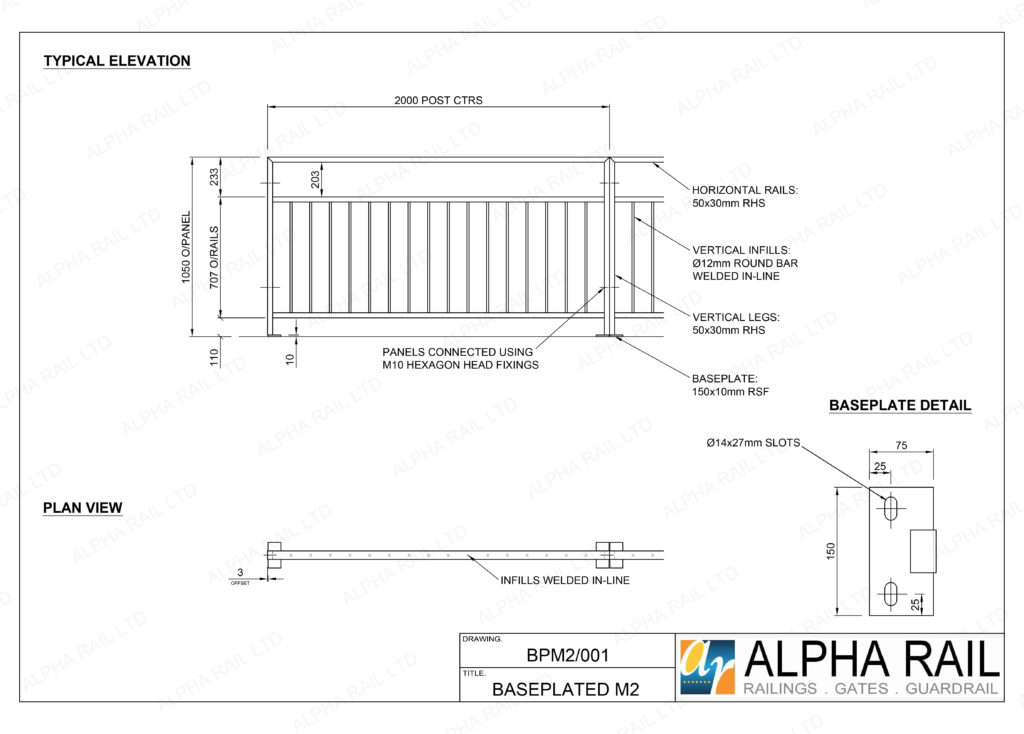

The tabs below provide a detailed drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.
If you require any further information for your project please do not hesitate to contact us.
Conformity: BS7818:1995
Height: 1100mm
Horizontal Rails: 50x30mm RHS
Vertical Infills: Ø12mm Round Bar
Support Posts: 50x30mm RHS
Centres of Posts: 1000mm to 2000mm
Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut
Finish: Hot dipped galvanised to BS EN ISO1461
Colour: Polyester powder coated in a RAL colour of your choice
Method of setting posts: Baseplate fixed
