Alpha Rail is able to manufacture decorative railings and guardrail systems with added features such as decorative posts, rings and finials. Some typical examples are shown below, or alternatively we can fabricate custom made products to suit any individual theme or requirement.

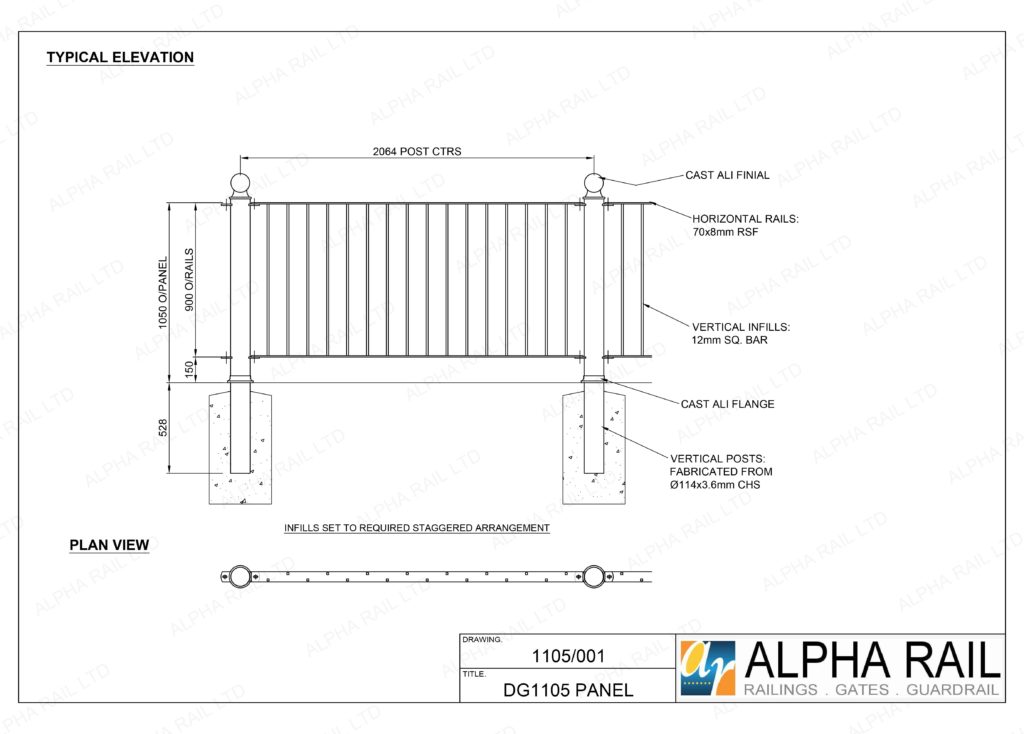

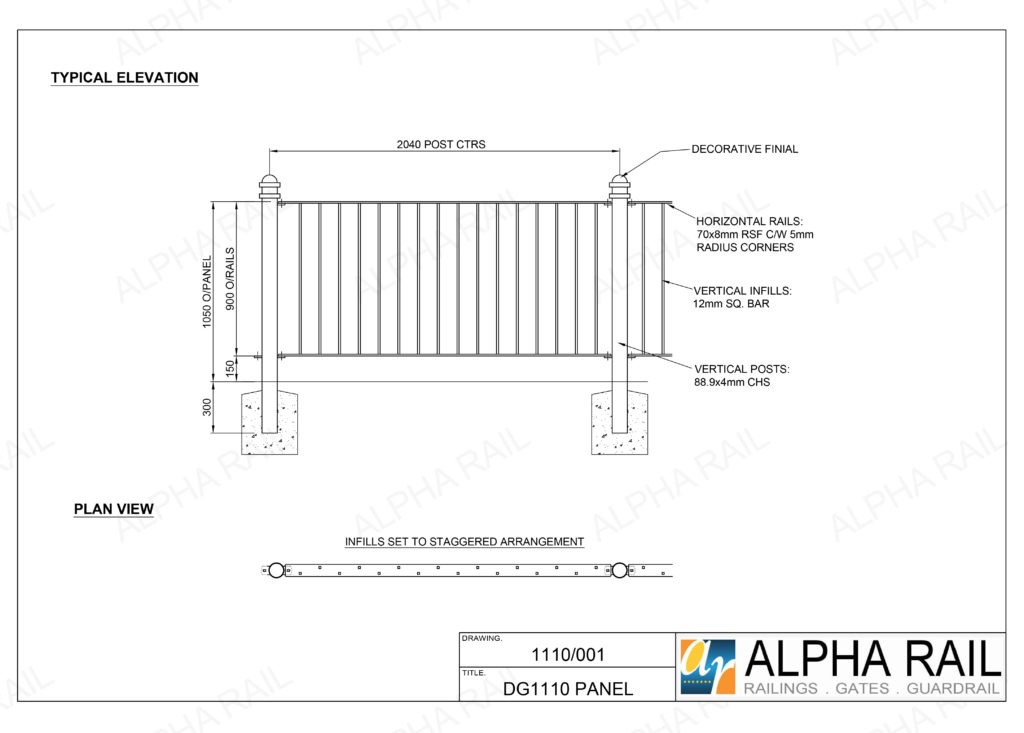

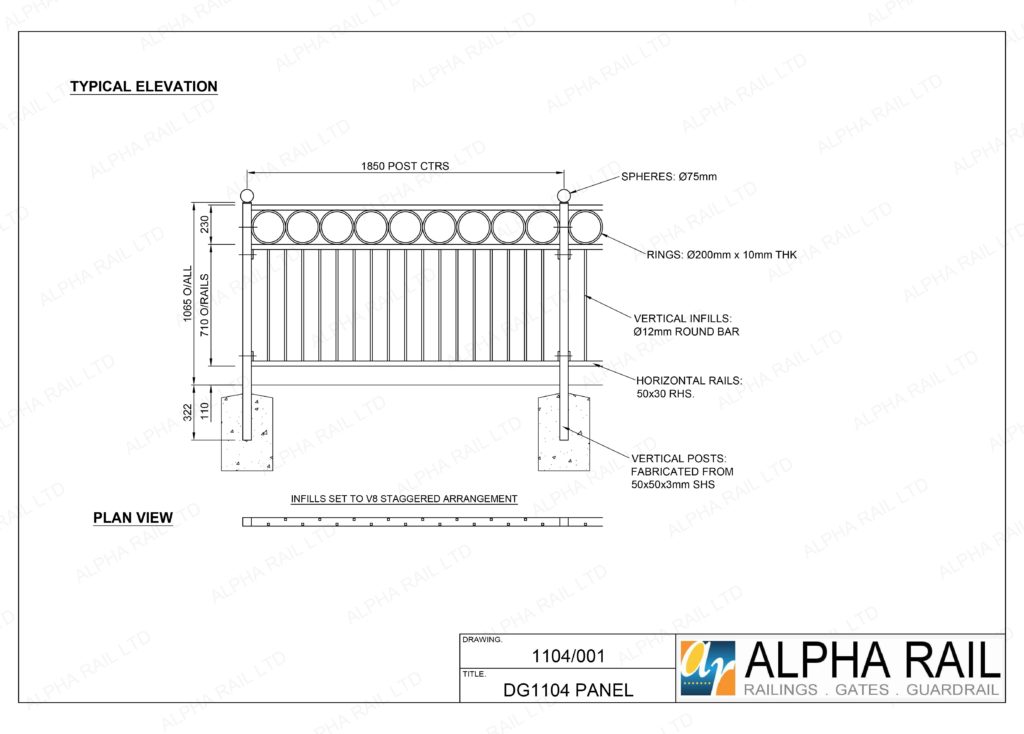

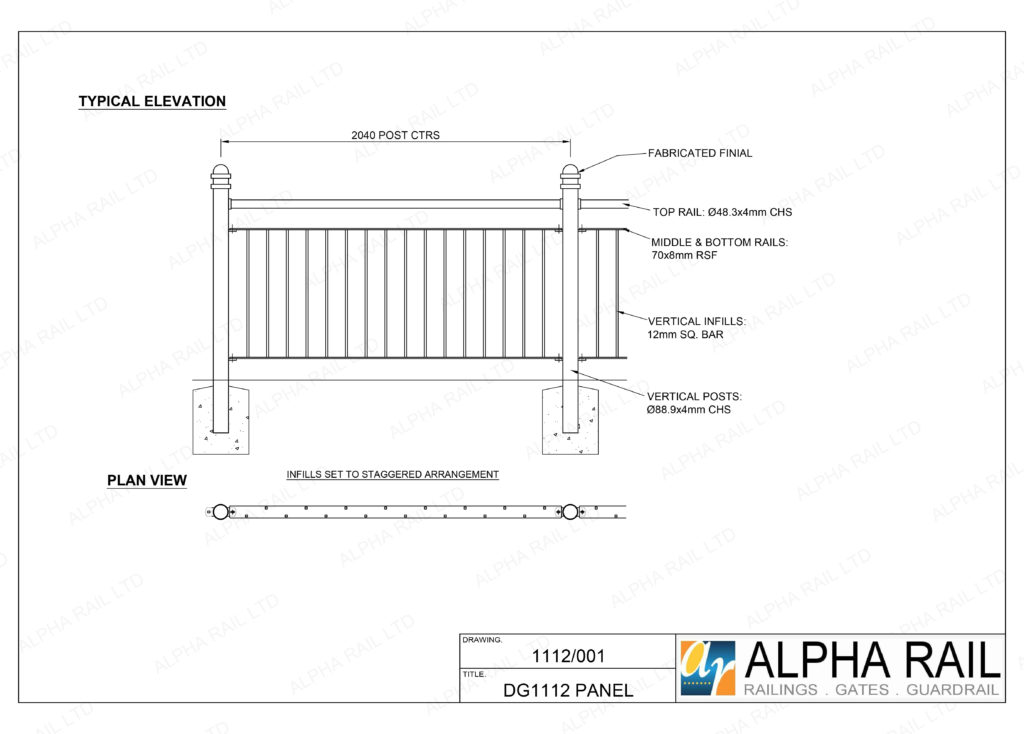

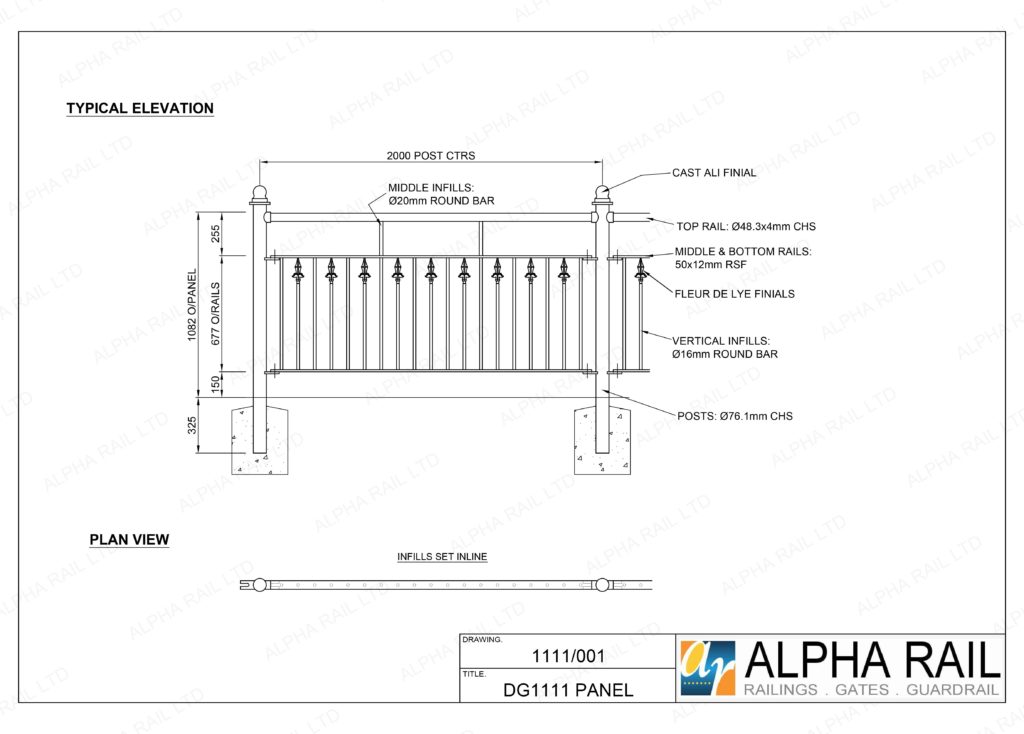

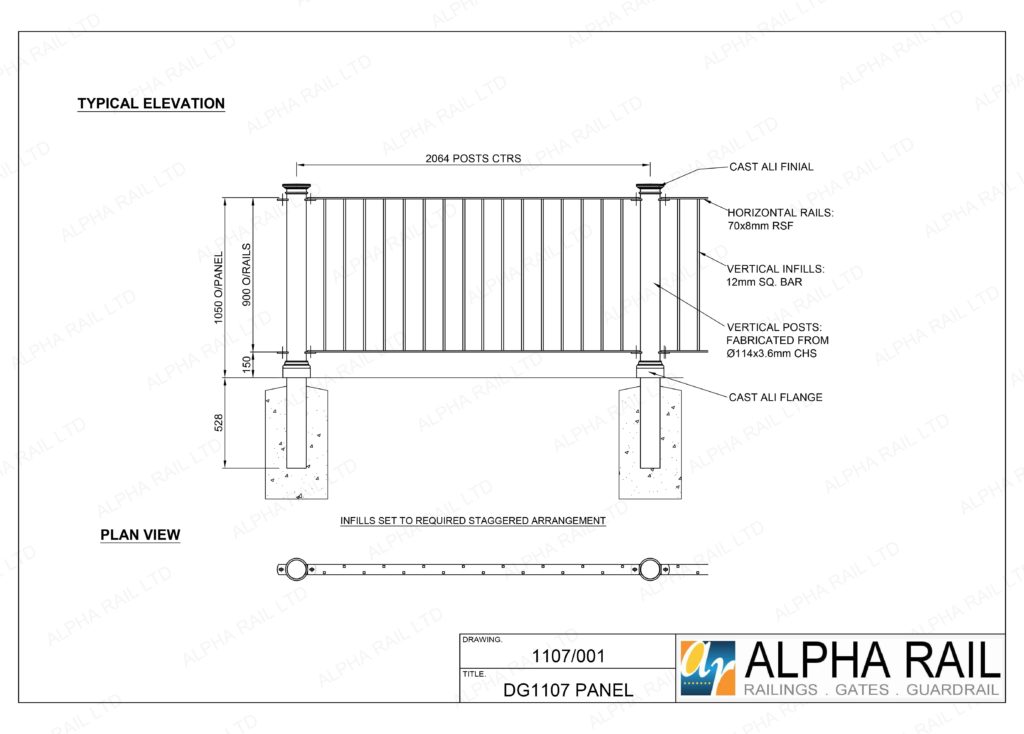

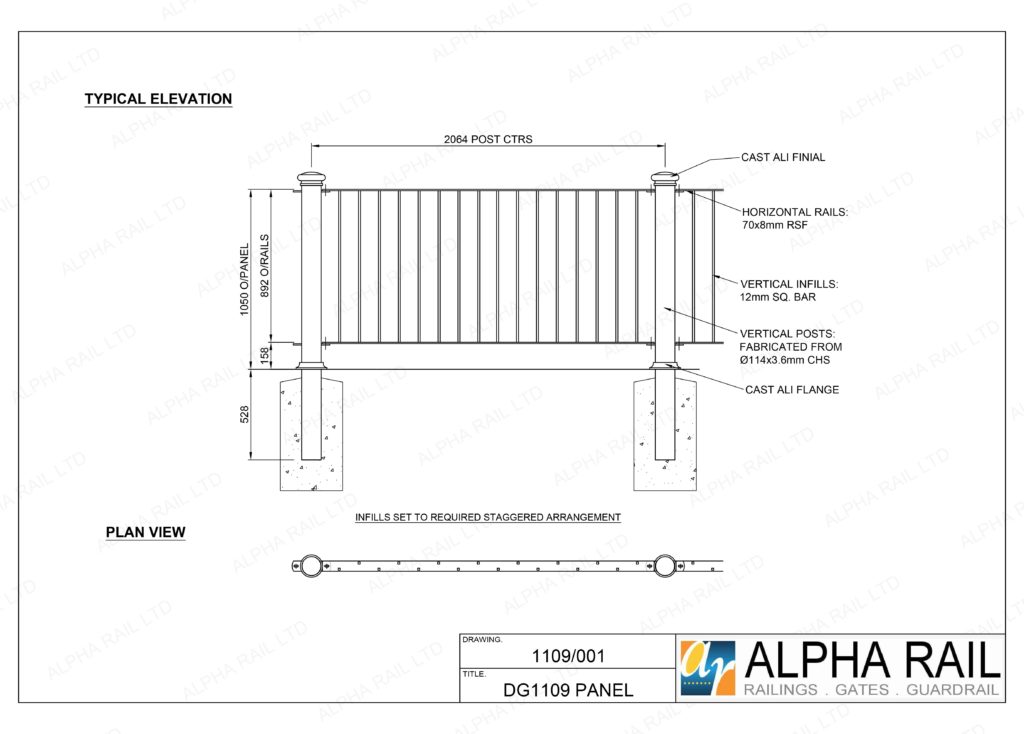

The tabs below provide a detailed drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.

If you require any further information for your project please do not hesitate to contact us.

Contact Us
Drawing & Datasheet
Specification
Fixing Options

Specification

Conformity: BS7818:1995

Height: 1100mm

Horizontal Rails: 50x30mm RHS

Vertical Infills: Ø12mm Round Bar

Support Posts: As per drawing

Centres of Posts: 1000mm to 2000mm

Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut

Finish: Hot dipped galvanised to BS EN ISO1461

Colour: Polyester powder coated in a RAL colour of your choice

Method of setting posts: Full length posts to be concreted in (rooted)
