Extending the popularity of Bow Top railings even further, The Hollinwell system was introduced to meet customer demand for even more decorative detailing with a smaller bow set inlayed within the standard bow.

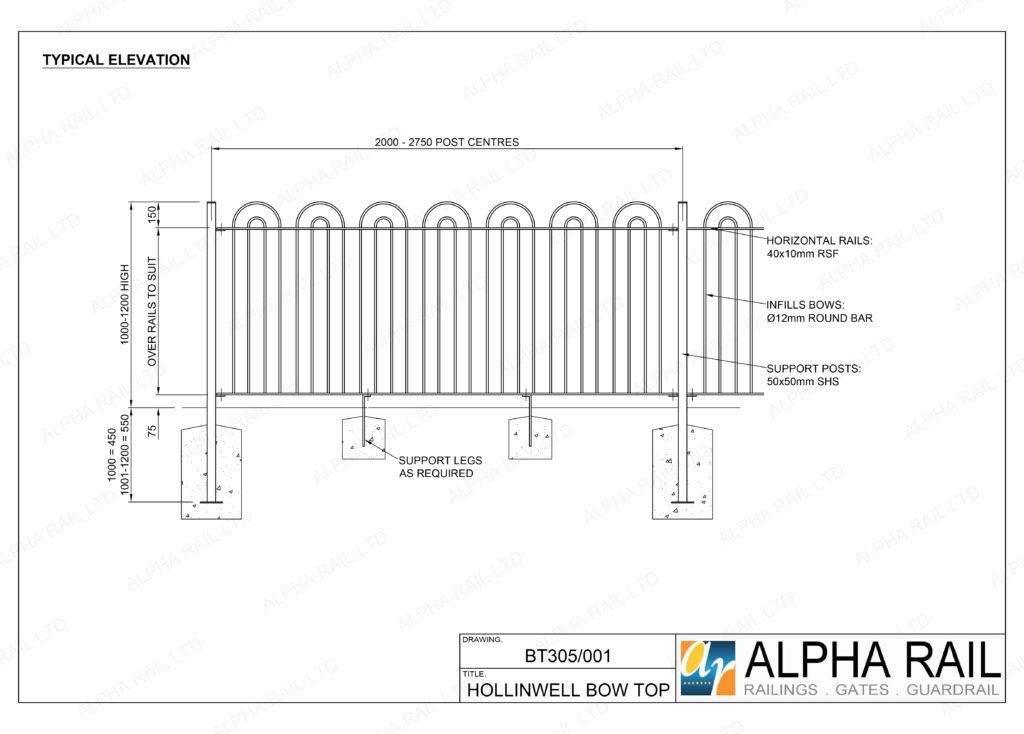

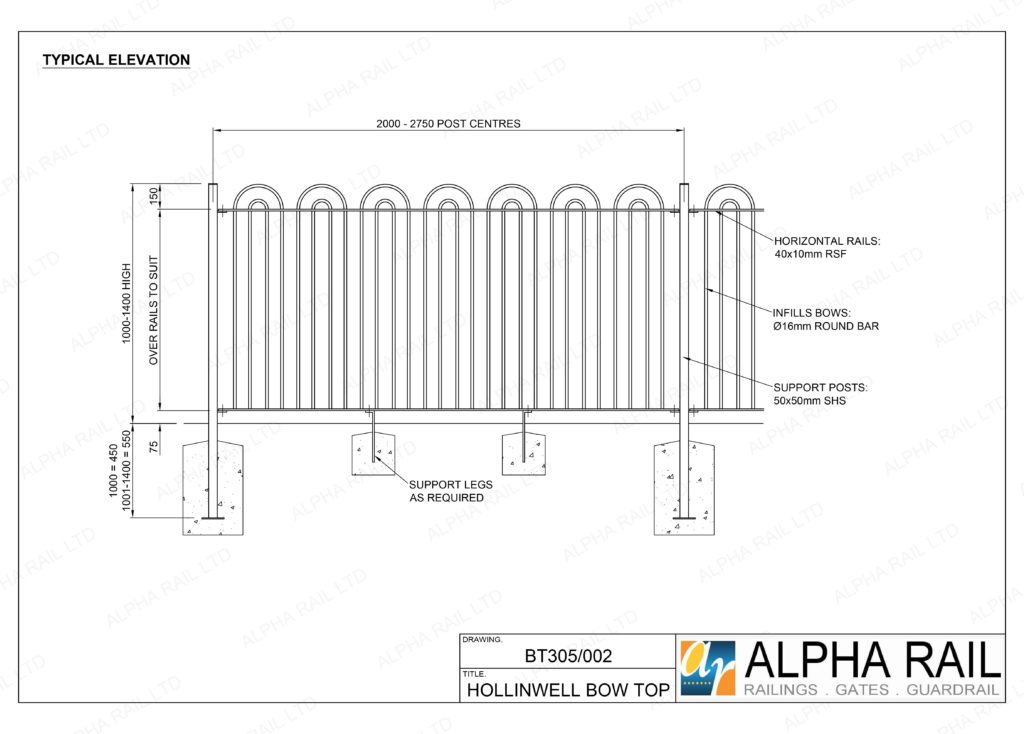

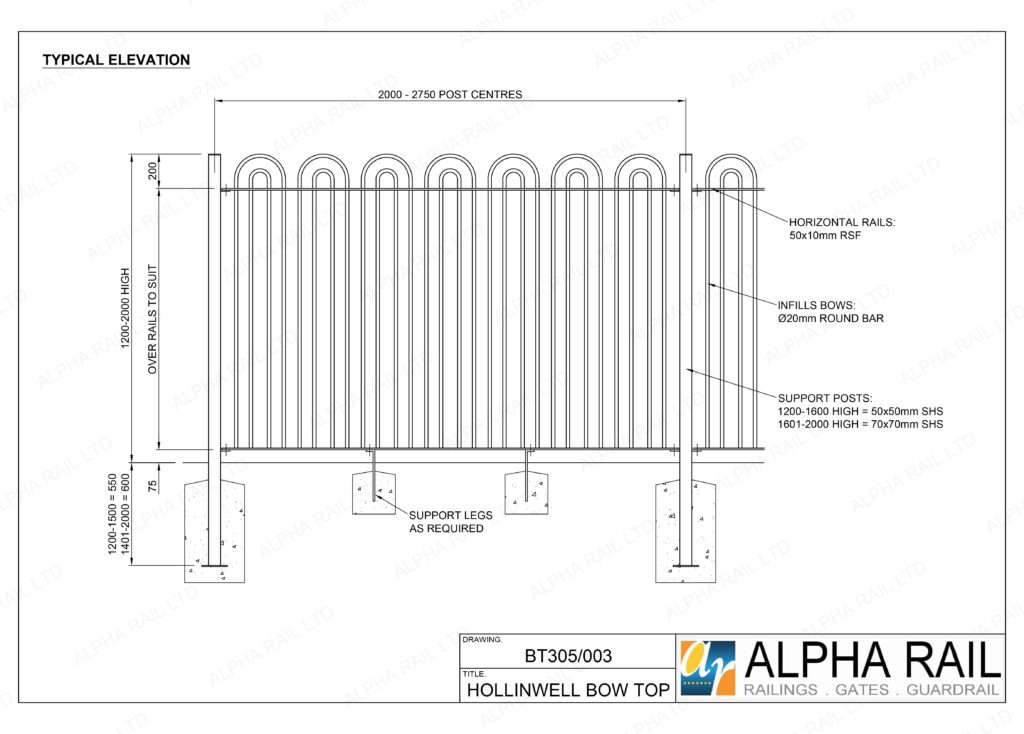

The tabs below provide a detailed drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.

If you require any further information for your project please do not hesitate to contact us.

Contact Us
Drawing & Datasheet
Specification
Fixing Options

Specification

Conformity: BS1722 part 9

Height: up to 2000mm

Horizontal Rails: 40x10mm RSF and 50x10mm RSF

Vertical Infills: Ø12mm Round Bar, Ø16mm Round Bar or Ø20mm Round Bar

Support Posts: 50x50mm SHS or 70x70mm SHS

Centres of Posts: 2000mm to 2750mm

Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut

Finish: Hot dipped galvanised to BS EN ISO1461

Colour: Polyester powder coated in a RAL colour of your choice

Method of setting posts: Posts rooted into concrete foundations, grouted into core drilled holes or baseplate fixed with anchor bolts
