Pedestrian Parapet Guardrail (P4 Parapet)

Home > Technical Drawings > Pedestrian Parapet Guardrail (P4 Parapet)

This type of guardrail is often referred to as class 3 pedestrian guardrail parapet or P4 pedestrian parapet. Our P4 pedestrian parapet differs from standard pedestrian guardrail in as much as it is designed for applications where there is a likelihood of a fall from height.

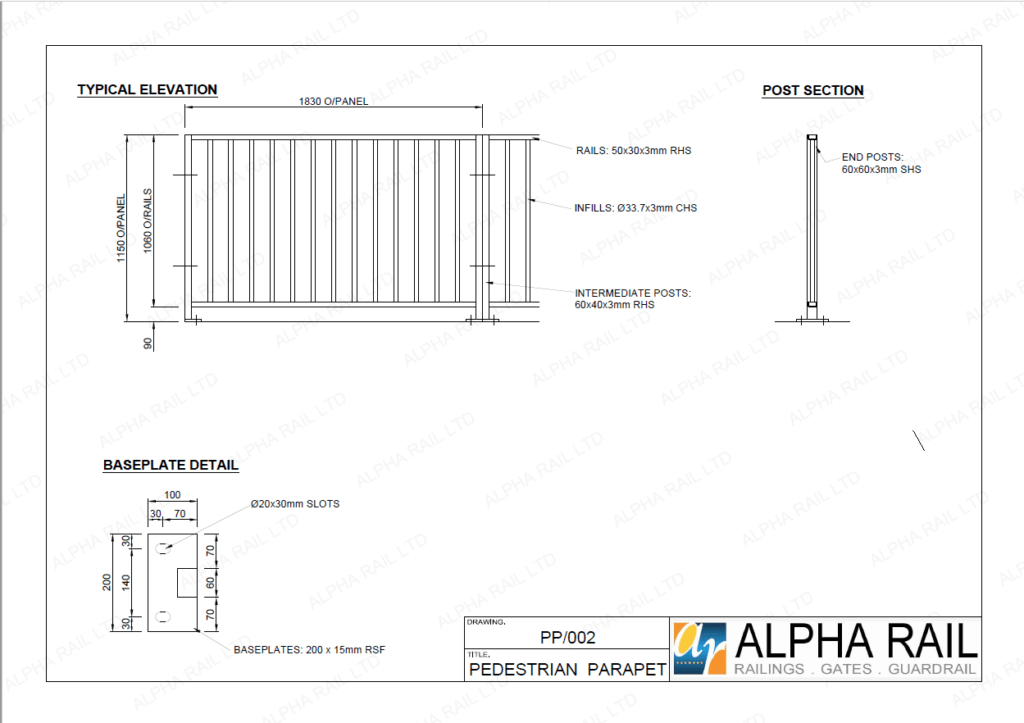

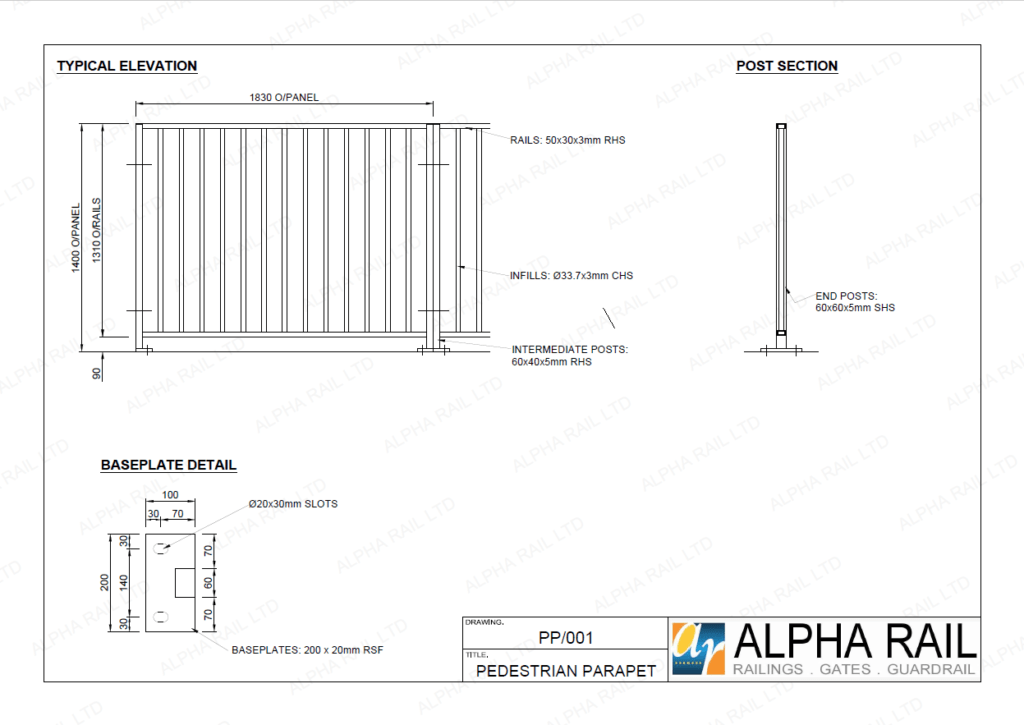

The tabs below provide a detailed drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.

If you require any further information for your project please do not hesitate to contact us.

Contact Us
Drawing & Datasheet
Specification
Fixing Options

Drawing

Specification

Conformity: BS7818:1995  Class 3C

Height: 1150mm to 1400mm

Horizontal Rails: 50x30mm RHS

Vertical Infills: Ø33.7mm CHS

Support Stile: 60×40 RHS

Centres of Posts: 1830mm

Panel Fixings: M10 hex-head bolt with washer and hexagon nut

Finish: Hot dipped galvanised to BS EN ISO1461

Colour: Polyester powder coated in a RAL colour of your choice

Method of setting posts: Baseplate fixed with anchor bolts
