This type of guardrail is often referred to as class 3 pedestrian guardrail parapet or P4 pedestrian parapet. Our P4 pedestrian parapet differs from standard pedestrian guardrail in as much as it is designed for applications where there is a likelihood of a fall from height.

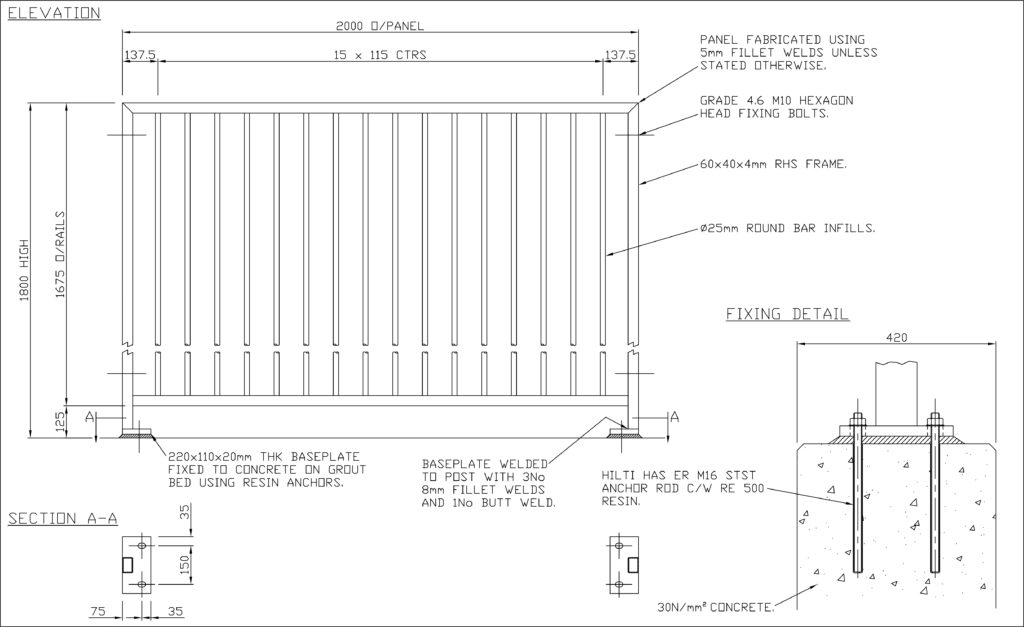

The tabs below provide a detailed drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.
If you require any further information for your project please do not hesitate to contact us.
Conformity: BS7818:1995
Height: 1800mm
Horizontal Rails: 60x60x4 RHS
Vertical Infills: Ø25mm bar
Support Posts: 60x60x4 RHS
Centres of Posts: 2000mm
Baseplates: 220x110x20mm RSF
Finish: Hot dipped galvanised to BS EN ISO1461
Colour: Polyester powder coated in a RAL colour of your choice
Method of setting posts: Baseplate fixed with anchor bolts
