The R2 is identical in construction to the M2 model, with the exception that the vertical infill bars have a diameter of 16mm as opposed to the standard 12mm.

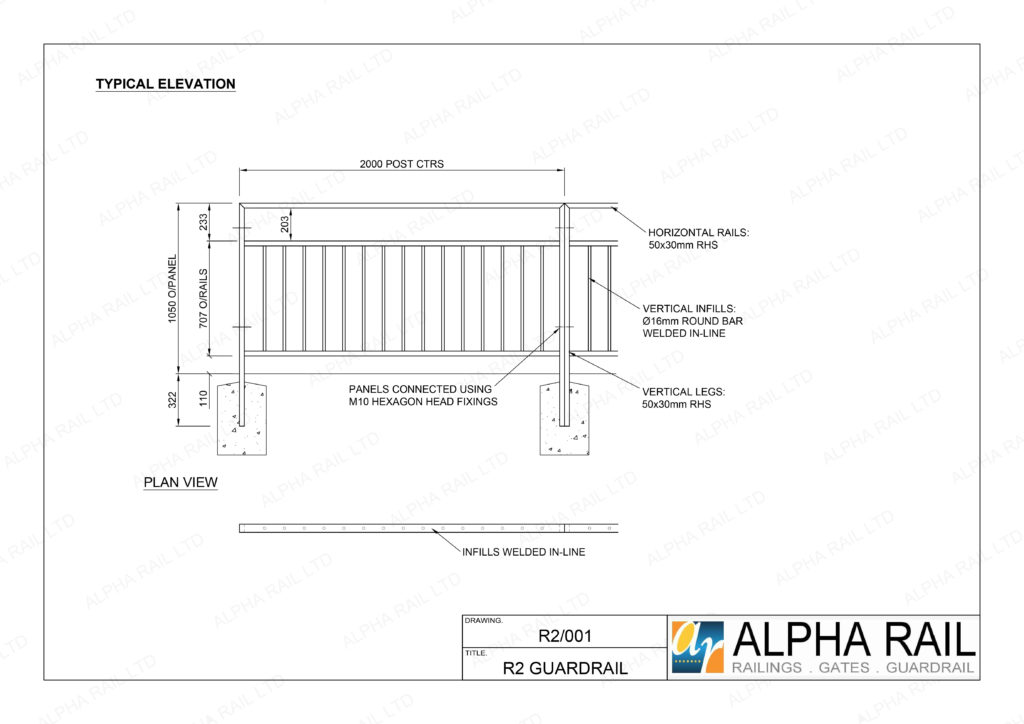

The tabs below provide a detailed drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.
If you require any further information for your project please do not hesitate to contact us.
Conformity: BS7818:1995
Height: 1050mm
Weight: 1m panel – 23kg, 2m panel – 40kg
Horizontal Rails: 50x30mm RHS
Vertical Infills: Ø16mm Round Bar
Support Posts: 50x30mm RHS
Centres of Posts: 1000mm to 2000mm
Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut
Finish: Hot dipped galvanised to BS EN ISO1461
Colour: Polyester powder coated in a RAL colour of your choice
Method of setting posts: Full length posts to be concreted in (rooted)
