Bow Top Railings are a traditional design ideally suited for schools, children’s play areas, public parks and gardens.

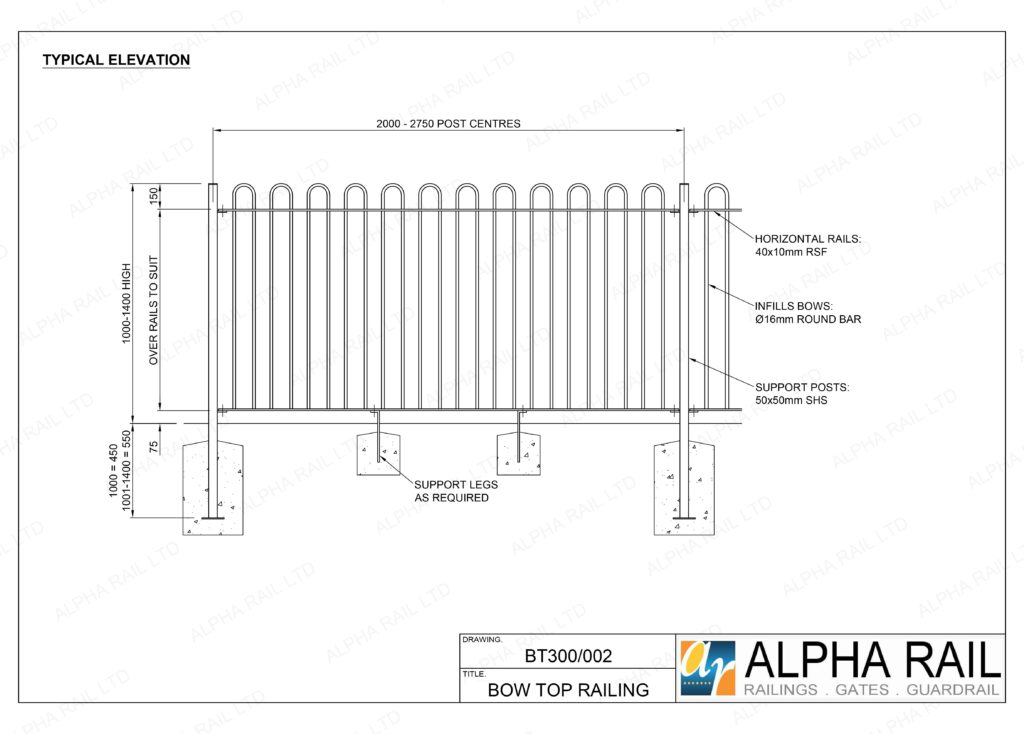

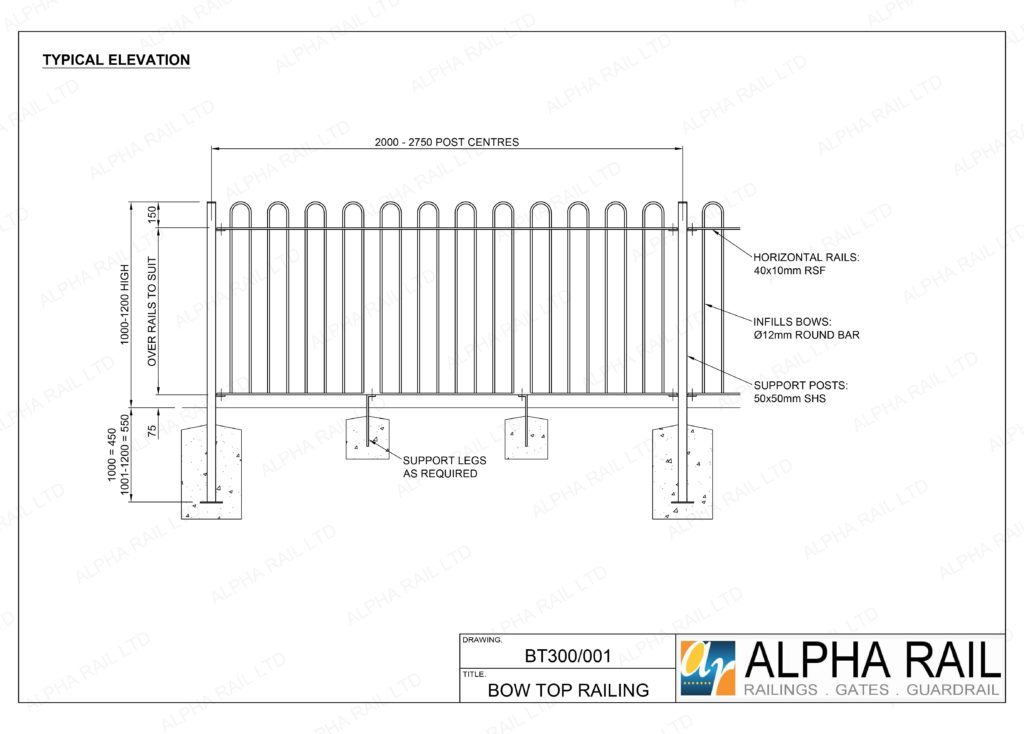

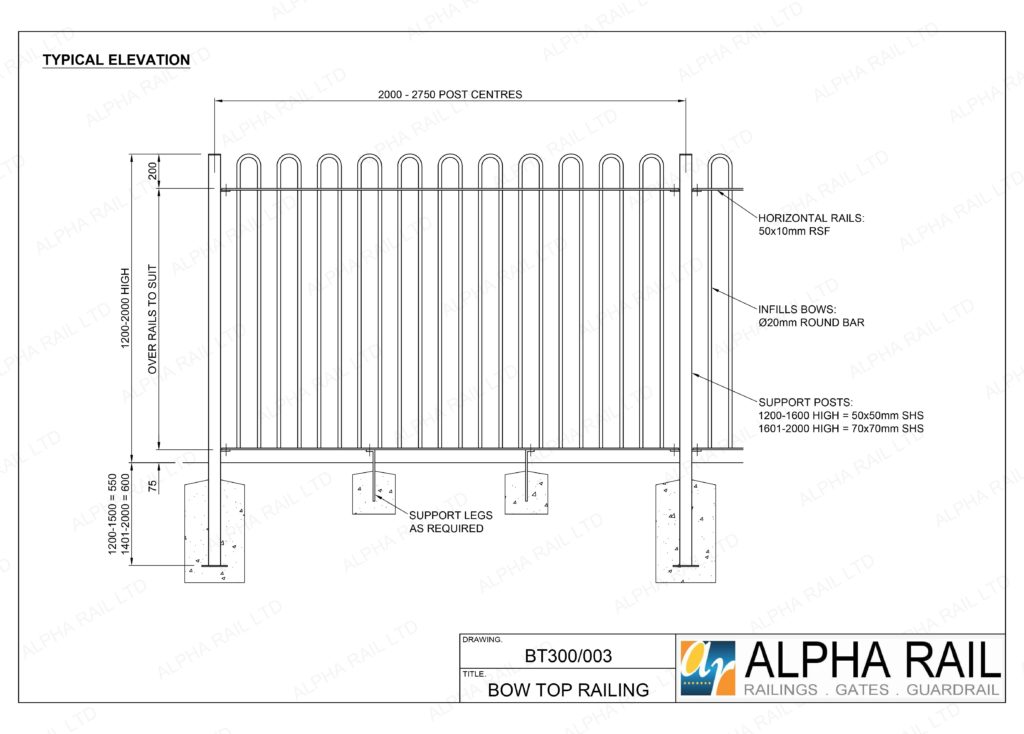

The tabs below provide a detailed drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.
If you require any further information for your project please do not hesitate to contact us.
Conformity: BS1722 part 9
Height: 1000mm to 2000mm
Horizontal Rails: 40x10mm RSF and 50x10mm RSF
Vertical Infills: Ø12mm Round Bar, Ø16mm Round Bar or Ø20mm Round Bar
Support Posts: 50x50mm SHS or 70x70mm SHS
Centres of Posts: 2000mm to 2750mm
Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut
Finish: Hot dipped galvanised to BS EN ISO1461
Colour: Polyester powder coated in a RAL colour of your choice
Method of setting posts: Posts rooted into concrete foundations, grouted into core drilled holes or baseplate fixed with anchor bolts
